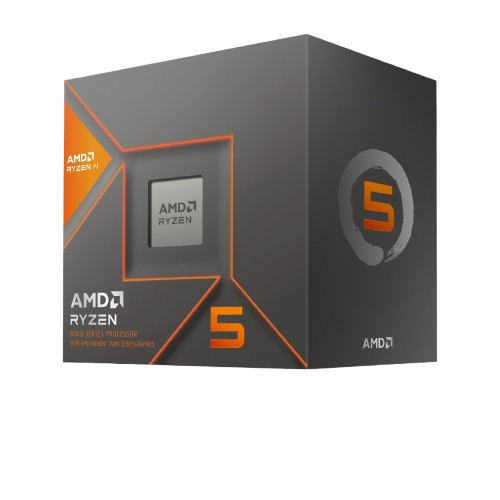

AMD Ryzen 5 8600G Desktop Processor (Not Sold Separately – Systems Only)

AMD Ryzen 5 8600G Specification –

Name AMD Ryzen™ 5 8600G

Family – Ryzen

Series – Ryzen 8000 Series

Form Factor – Desktops

AMD PRO Technologies – No

Consumer Use – Yes

Regional Availability – Global

Former Codename – Phoenix

Architecture – Zen 4

# of CPU Cores – 6

Multithreading (SMT) – Yes

# of Threads – 12

Max. Boost Clock – Up to 5 GHz

Base Clock – 4.3 GHz

L2 Cache – 6 MB

L3 Cache – 16 MB

Default TDP – 65W

AMD Configurable TDP (cTDP) – 45-65W

Processor Technology for CPU Cores – TSMC 4nm FinFET

CPU Compute Die (CCD) Size – 178mm²

Package Die Count – 1

Unlocked for Overclocking – Yes

AMD EXPO™ Memory Overclocking Technology – Yes

Precision Boost Overdrive – Yes

Curve Optimizer Voltage Offsets – Yes

AMD Ryzen™ Master Support – Yes

CPU Socket – AM5

CPU Boost Technology – Precision Boost 2

Instruction Set – x86-64

Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Max. Operating Temperature (Tjmax) 95°C

*OS Support Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 4 (40Gbps) Ports 2

Native USB 3.2 Gen 2 (10Gbps) Ports 2

Native USB 2.0 (480Mbps) Ports 1

PCI Express® Version PCIe® 4.0

Native PCIe® Lanes (Total/Usable) 20 , 16

NVMe Support Boot , RAID0 , RAID1

System Memory Type DDR5

Memory Channels 2

Max. Memory 256 GB

System Memory Subtype UDIMM

Max Memory Speed
2x1R – DDR5-5200
2x2R – DDR5-5200
4x1R – DDR5-3600
4x2R – DDR5-3600

Graphics Capabilities

Graphics Model AMD Radeon™ 760M

Graphics Core Count 8

Graphics Frequency 2800 MHz

DirectX® Version 12

DisplayPort™ Version 2.1

DisplayPort Extensions Adaptive-Sync , HDR Metadata , UHBR10

DisplayPort Max Refresh Rates (SDR) 7680×4320 @ 60Hz , 3840×2160 @ 240Hz , 3440×1440 @ 360Hz , 2560×1440 @ 480Hz , 1920×1080 @ 600Hz

DisplayPort Max Refresh Rates (HDR) 7680×4320 @ 60Hz , 3840×2160 @ 240Hz , 3440×1440 @ 360Hz , 2560×1440 @ 480Hz , 1920×1080 @ 600Hz

HDMI® Version 2.1

HDCP Version Supported 2.3

USB Type-C® DisplayPort™ Alternate Mode yes

Multi-Monitor Support yes

Max Displays 4

AMD FreeSync™ yes

Wireless Display Miracast

Max Video Encode Bandwidth (SDR) 1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV

Max Video Decode Bandwidth 1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

AMD SmartAccess Memory Available

AI Engine Capabilities

Brand Name AMD Ryzen™ AI

AMD Ryzen™ AI Available

Performance Up to 16 TOPS

Security, Virtualization, and Manageability

AMD Enhanced Virus Protection (NX bit) Yes
