- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4070 Ti
- Integrated with 12GB GDDR6X 192bit memory interface
-
- WINDFORCE Cooling System
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- Anti-sag bracket
- New Streaming Multiprocessors
Up to 2x performance and power efficiency - Fourth-Gen Tensor Cores
Up to 2x AI performance - Third-Gen RT Cores
Up to 2x ray tracing performance
The Ada architecture unleashes the full glory of ray tracing, which simulates h ow light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
DLSS is a revolutionary breakthrough in Al-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses Al to create additional high-quality frames.
NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.
Take your creative projects to the next level with NVIDIA Studio. Powered by new dedicated hardware, RTX 40 Series unlocks unmatched performance in 3D rendering, video editing, and graphic design. Experience feature-rich RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 6 composite copper heat pipes, a vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Reduce the turbulence of adjacent fans and increase airflow pressure.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
The vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Extended heatsink allows air to pass through, providing better heat dissipation.
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
© 2023 NVIDIA Corporation. NVIDIA, the NVIDIA logo, GeForce, GeForce Experience, GeForce RTX, G-SYNC, and ShadowPlay are registered trademarks and/or trademarks of NVIDIA Corporation in the United States and other countries. All other trademarks and copyrights are the property of their respective owners.
* All the images in this page are for illustration only.

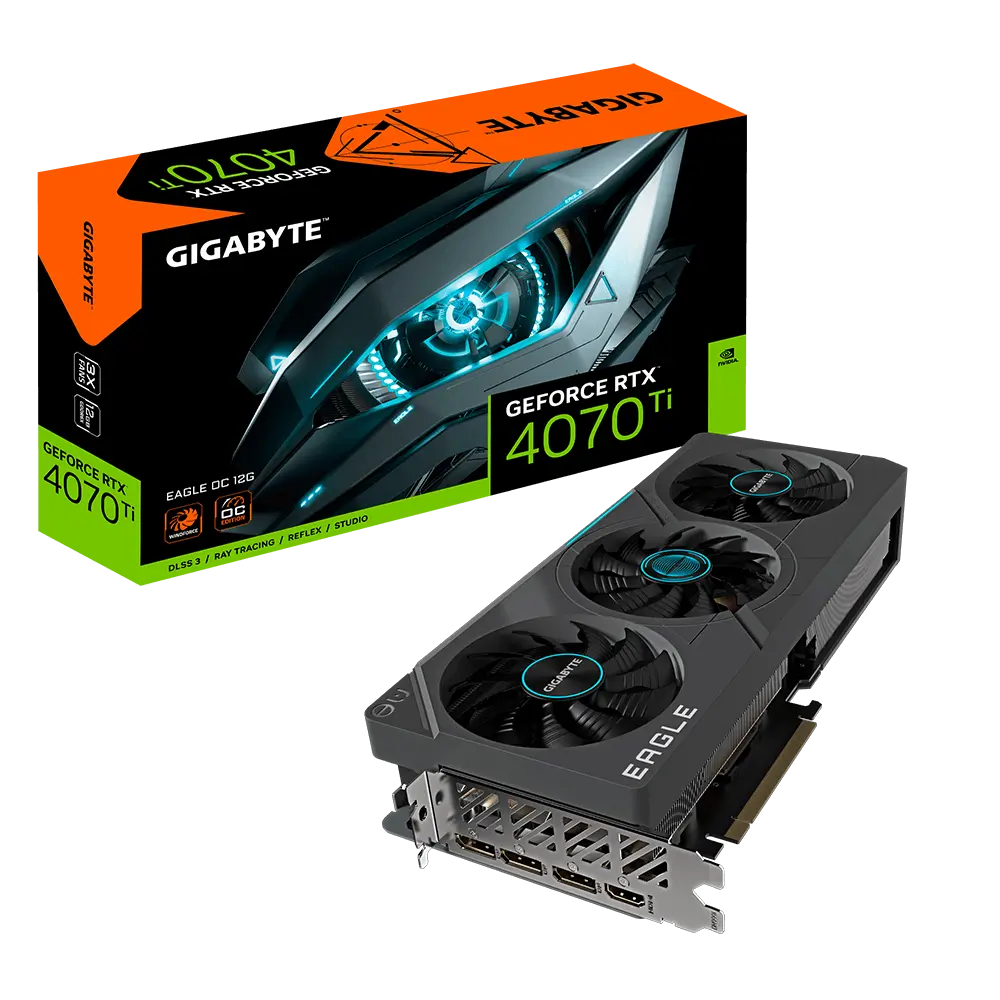

Gigabyte GeForce RTX 4070 Ti EAGLE OC 12G –
-
Graphics ProcessingGeForce RTX™ 4070 Ti
-
Core Clock2625 MHz (Reference card : 2610 MHz)
-
CUDA® Cores7680
-
Memory Clock21 Gbps
-
Memory Size12 GB
-
Memory TypeGDDR6X
-
Memory Bus192 bit
-
Card BusPCI-E 4.0
-
Digital max resolution7680×4320
-
Multi-view4
-
Card sizeL=301 W=136 H=58 mm
-
PCB FormATX
-
DirectX12 Ultimate
-
OpenGL4.6
-
Recommended PSU750W
-
Power Connectors16 pin *1
-
OutputDisplayPort 1.4 *3
HDMI 2.1 *1 -
Accessories1. Quick guide
2. Anti-sag bracket
3. Anti-sag bracket installation guide
4. One 16-pin to two 8-pin power adaptor
