| Product Collection |
|

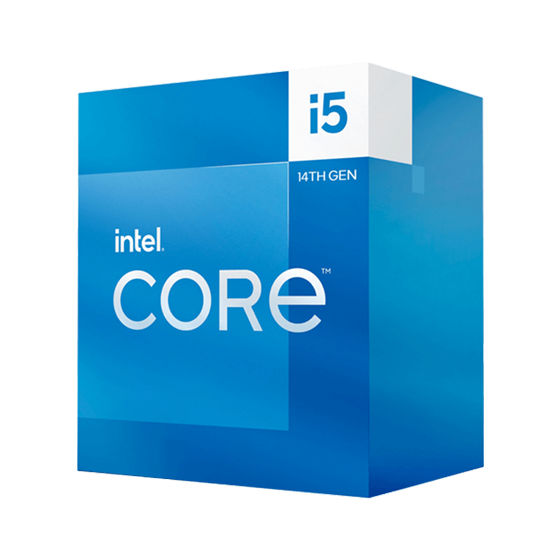

Intel® Core™ i5 Processors (14th gen) |
|
|
|
| Code Name |
|
Products formerly Raptor Lake |
|
|
|
| Vertical Segment |
|
Desktop |
|
|
|
| Processor Number |
|
i5-14400 |
|
|
|
| Lithography |
|
Intel 7 |
|
|
|
| Use Conditions |
|
PC/Client/Tablet |
|
|
|
| Total Cores |
|
10 |
|
|
|
| # of Performance-cores |
|
6 |
|
|
|
| # of Efficient-cores |
|
4 |
|
|
|
| Total Threads |
|
16 |
|
|
|
| Max Turbo Frequency |
|
4.7 GHz |
|
|
|
| Performance-core Max Turbo Frequency |
|
4.7 GHz |
|
|
|
| Efficient-core Max Turbo Frequency |
|
3.5 GHz |
|
|
|
| Performance-core Base Frequency |
|
2.5 GHz |
|
|
|
| Efficient-core Base Frequency |
|
1.8 GHz |
|
|
|
| Cache |
|
20 MB Intel® Smart Cache |
|
|
|
| Total L2 Cache |
|
9.5 MB |
|
|
|
| Processor Base Power |
|
65 W |
|
|
|
| Maximum Turbo Power |
|
148 W |
|
|
|
| Max Memory Size (dependent on memory type) |
|
192 GB |
|
|
|
| Memory Types |
|
Up to DDR5 4800 MT/s |
|
|
Up to DDR4 3200 MT/s |
|
|
|
| Max # of Memory Channels |
|
2 |
|
|
|
| Max Memory Bandwidth |
|
76.8 GB/s |
|
|
|
| GPU Name‡ |
|
Intel® UHD Graphics 730 |
|
|
|
| Graphics Max Dynamic Frequency |
|
1.55 GHz |
|
|
|
| Graphics Output |
|
eDP 1.4b, DP 1.4a, HDMI 2.1 |
|
|
|
| Execution Units |
|
24 |
|
|
|
| Max Resolution (HDMI)‡ |
|
4096 x 2160 @ 60Hz |
|
|
|
| Max Resolution (DP)‡ |
|
7680 x 4320 @ 60Hz |
|
|
|
| Max Resolution (eDP – Integrated Flat Panel)‡ |
|
5120 x 3200 @ 120Hz |
|
|
|
| DirectX* Support |
|
12 |
|
|
|
| OpenGL* Support |
|
4.5 |
|
|
|
| OpenCL* Support |
|
3 |
|
|
|
| Multi-Format Codec Engines |
|
1 |
|
|
|
| Intel® Quick Sync Video |
|
Yes |
|
|
|
| Intel® Clear Video HD Technology |
|
Yes |
|
|
|
| # of Displays Supported ‡ |
|
4 |
|
|
|
| Device ID |
|
0x4682/0xA782 |
|
|
|
| Direct Media Interface (DMI) Revision |
|
4 |
|
|
|
| Max # of DMI Lanes |
|
8 |
|
|
|
| Scalability |
|
1S Only |
|
|
|
| PCI Express Revision |
|
5.0 and 4.0 |
|
|
|
| PCI Express Configurations ‡ |
|
Up to 1×16+4, 2×8+4 |
|
|
|
| Max # of PCI Express Lanes |
|
20 |
|
|
|
| Sockets Supported |
|
FCLGA1700 |
|
|
|
| Max CPU Configuration |
|
1 |
|
|
|
| Thermal Solution Specification |
|
PCG 2020C |
|
|
|
| TJUNCTION |
|
100°C |
|
|
|
| Package Size |
|
45.0 mm x 37.5 mm |
|
|
|
| Intel® Gaussian & Neural Accelerator |
|
3 |
|
|
|
| Intel® Thread Director |
|
Yes |
|
|
|
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
|
Yes |
|
|
|
| Intel® Speed Shift Technology |
|
Yes |
|
|
|
| Intel® Turbo Boost Technology ‡ |
|
2 |
|
|
|
| Intel® Hyper-Threading Technology ‡ |
|
Yes |
|
|
|
| Intel® 64 ‡ |
|
Yes |
|
|
|
| Instruction Set |
|
64-bit |
|
|
|
| Instruction Set Extensions |
|
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
|
|
|
| Idle States |
|
Yes |
|
|
|
| Enhanced Intel SpeedStep® Technology |
|
Yes |
|
|
|
| Thermal Monitoring Technologies |
|
Yes |
|
|
|
| Intel® Volume Management Device (VMD) |
|
Yes |
|
|
|
| Intel® Standard Manageability (ISM) ‡ |
|
Yes |
|
|
|
| Intel® Control-Flow Enforcement Technology |
|
Yes |
|
|
|
| Intel® AES New Instructions |
|
Yes |
|
|
|
| Secure Key |
|
Yes |
|
|
|
| Intel® OS Guard |
|
Yes |
|
|
|
| Execute Disable Bit ‡ |
|
Yes |
|
|
|
| Intel® Boot Guard |
|
Yes |
|
|
|
| Mode-based Execute Control (MBEC) |
|
Yes |
|
|
|
| Intel® Virtualization Technology (VT-x) ‡ |
|
Yes |
|
|
|
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ |
|
Yes |
|
|
|
| Intel® VT-x with Extended Page Tables (EPT) ‡ |
|
Yes |
