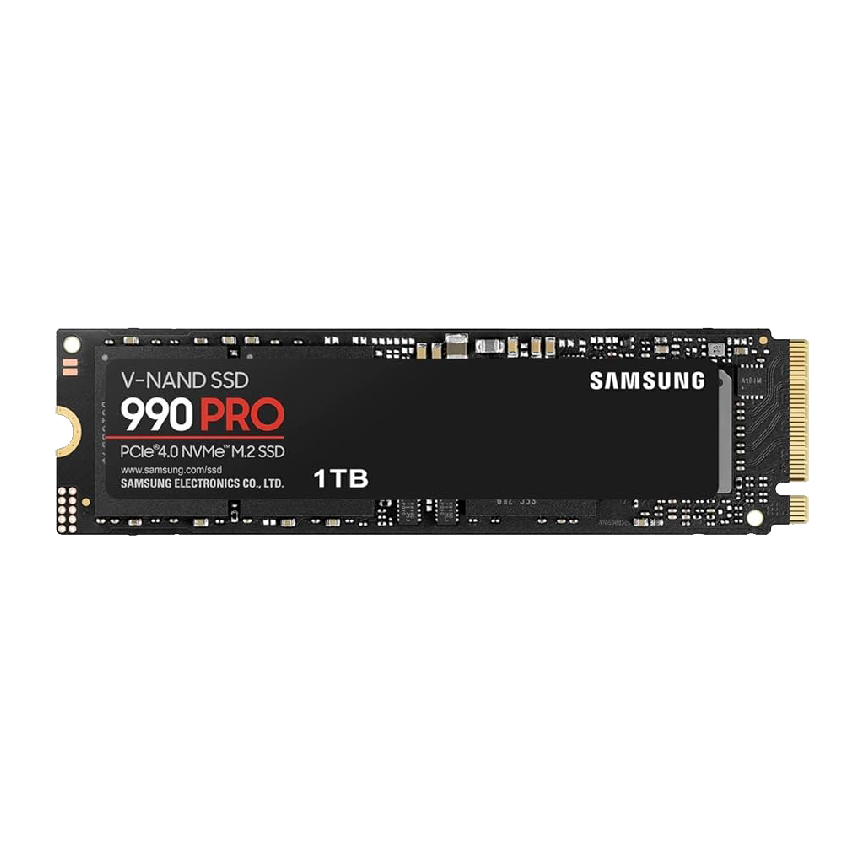

SAMSUNG 990 PRO SSD 1TB PCIe 4.0 NVMe

SAMSUNG 990 PRO SSD 1TB PCIe 4.0 NVMe

Specifications

Form Factor
M.2

Capacity
1TB

Sequential Read Speed
Up to 7,450 MB/s

Sequential Write Speed
Up to 6,900 MB/s
Model Code (Capacity)1)
MZ-V9P1T0BW (1TB)

MZ-V9P2T0BW (2TB)

MZ-V9P4T0BW (4TB)

General Feature
APPLICATION
Client PCs, Game Consoles

FORM FACTOR
M.2 (2280)

INTERFACE
PCIe Gen 4.0 x4, NVMe 2.0

DIMENSION (WxHxD)
80 x 22 x 2.3 mm

WEIGHT
Max 9.0g Weight

STORAGE MEMORY
Samsung V-NAND 3-bit MLC

CONTROLLER
Samsung in-house Controller

CACHE MEMORY
Samsung 1GB Low Power DDR4 SDRAM (1TB)
Samsung 2GB Low Power DDR4 SDRAM(2TB)
Samsung 4GB Low Power DDR4 SDRAM(4TB)

Special Feature
TRIM SUPPORT
Supported

S.M.A.R.T SUPPORT
Supported

GC (GARBAGE COLLECTION)
Auto Garbage Collection Algorithm

ENCRYPTION SUPPORT
AES 256-bit Encryption (Class 0) TCG/Opal
IEEE1667 (Encrypted drive)

WWN SUPPORT
Not supported

DEVICE SLEEP MODE SUPPORT
Yes

Performance2)
SEQUENTIAL READ
1TB: Up to 7,450 MB/s

SEQUENTIAL WRITE
1TB: Up to 6,900 MB/s

RANDOM READ (4KB, QD32)
1TB: Up to 1,200,000 IOPS

RANDOM WRITE (4KB, QD32)
1TB: Up to 1,550,000 IOPS

RANDOM READ (4KB, QD1)
1TB: Up to 22,000 IOPS

RANDOM WRITE (4KB, QD1)
1TB: Up to 80,000 IOPS

Environment
AVERAGE POWER CONSUMPTION
(SYSTEM LEVEL)3)
1TB: Average 5.4 W Maximum 7.8 W (Burst mode)

POWER CONSUMPTION (IDLE)3)
1TB: Max. 50 mW

POWER CONSUMPTION (DEVICE SLEEP)
1TB: Max. 5 mW

ALLOWABLE VOLTAGE
3.3 V ± 5 % Allowable voltage

RELIABILITY (MTBF)
1.5 Million Hours Reliability (MTBF)

OPERATING TEMPERATURE
0 – 70 ℃ Operating Temperature

SHOCK
1,500 G & 0.5 ms (Half sine)

Accessories
INSTALLATION KIT
Not Available

Software
MANAGEMENT SW
Magician Software for SSD management
