ViewSonic VA1903h 19” Specification – |
|
Display |
Display Size (in.): 19 Viewable Area (in.): 18.5 Panel Type: TN Technology Resolution: 1366 x 768 Resolution Type: WXGA (Wide XGA) Static Contrast Ratio: 600:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED Brightness: 200 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + FRC) Aspect Ratio: 16:9 Response Time (Typical Tr+Tf): 5ms Viewing Angles: 90º horizontal, 65º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Blue Light Filter: Yes Flicker-Free: Yes Color Gamut: NTSC: 72% size (Typ) sRGB: 102% size (Typ) Pixel Size: 0.3 mm (H) x 0.3 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) |
Compatibility |
PC Resolution (max): 1366×768 Mac® Resolution (max): 1366×768 PC Operating System: Windows 10/11 certified; macOS tested Mac® Resolution (min): 1366×768 |
Connector |

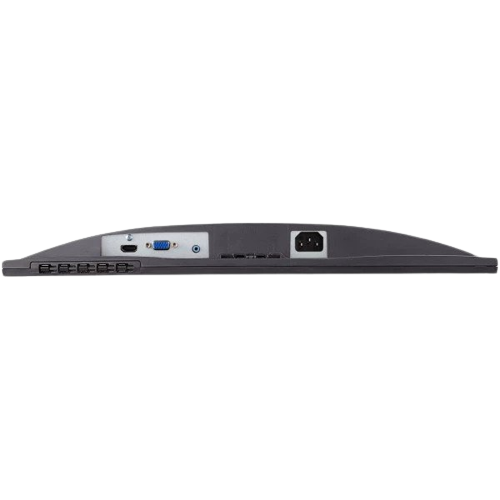

VGA: 1 3.5mm Audio Out: 1 HDMI 1.4: 1 Power in: 3-pin Socket (IEC C14 / CEE22) |
Power |
Eco Mode (Conserve): 9.5W Eco Mode (optimized): 12.5W Consumption (typical): 15.3W Consumption (max): 17W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply |
Additional Hardware |
Kensington Lock Slot: 1 |
Controls |
Physical Controls: Auto, Left, Right, Menu, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall |
Operating Conditions |
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% |
Wall Mount |

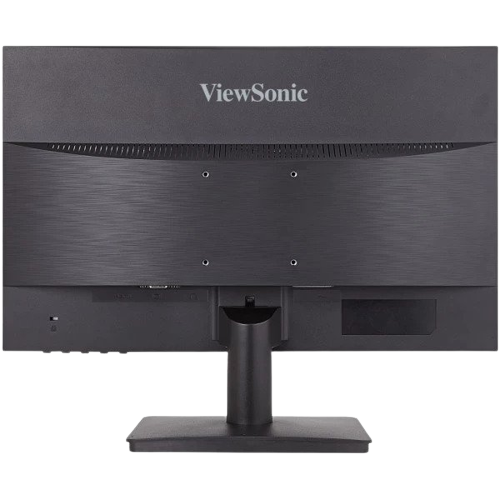

VESA Compatible: 75 x 75 mm |
Input Signal |
Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz |
Video Input |
Digital Sync: TMDS – HDMI (v1.4) Analog Sync: Separate – RGB Analog |
Ergonomics |

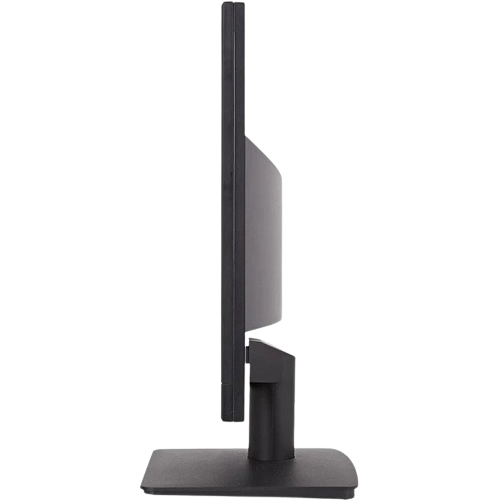

Tilt (Forward/Back): -3º / 18º |
Weight (imperial) |
Net (lbs): 4.6 Net Without Stand (lbs): 4 Gross (lbs): 6.6 |
Weight (metric) |
Net (kg): 2.1 Net Without Stand (kg): 1.8 Gross (kg): 3 |
Dimensions (imperial) (wxhxd) |
Packaging (in.): 19.8 x 13.7 x 4.1 Physical (in.): 17.2 x 13.5 x 6.7 Physical Without Stand (in.): 17.2 x 10.7 x 1.9 |
Dimensions (metric) (wxhxd) |
Packaging (mm): 502 x 349 x 105 Physical (mm): 438 x 344 x 170 Physical Without Stand (mm): 438 x 271 x 48 |
General |
Regulations: cTUVus, FCC-B, ICES003, CEC, IQC-ST, MX-CoC, Mexico Energy, CB, RoHS, WEEE, BIS PACKAGE CONTENTS: VA1903H x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market |
