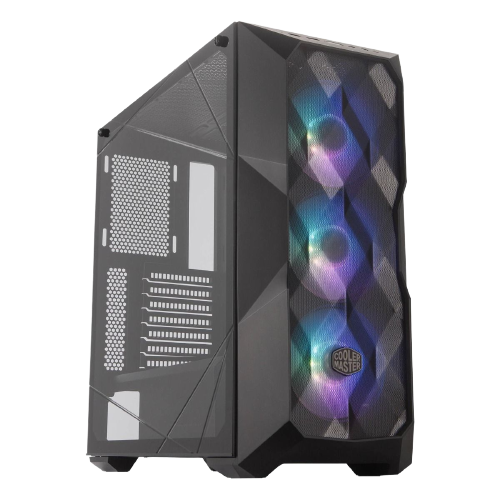

Cooler Master MasterBox TD500 Mesh Casing
Features
Airflow in an Art Form
The MasterBox TD500 Mesh & MasterBox TD500 Mesh White embody “airflow performance” in an art form. Three pre-installed ARGB fans flood the system with airflow and lighting, demonstrating the unique effect of ARGB through the Crystalline Tempered Glass.
Each element of design is precision-engineered to maximize performance & quality alongside aesthetics, evolving beyond the current limits of lighting and cooling. With advanced technology sculpted into fine art, the MasterBox TD500 Mesh & Mesh White carve their own path to the bleeding edge.
Polygonal Mesh
Crafted from Cooler Master’s Fine Mesh technology, Polygonal Mesh features a three-dimensional contour and simultaneously provides unobstructed airflow and dust filtration.
Triple ARGB Fans
Three addressable RGB fans flood the Polygonal Mesh front panel with lighting while providing considerable airflow to the system.
Certified compatible with: ASUS, Gigabyte, MSI, and ASRock motherboards.
Dual 360mm Radiator Support
For enthusiast-grade cooling, two 360mm radiators are supported on the top and front panel to keep the most extreme systems cool.
Versatile Cooling Options
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
Room For Upgrades
Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game.
Specifications
| Product Name |
MasterBox TD500 Mesh With Controller |
| Product Number |
MCB-D500D-KGNN-S01 |
| Exterior Color |
Black |
| Materials |
Exterior – Steel,Mesh,Plastic
Left Side Panel – Tempered Glass |
| Dimensions (L x W x H) |
incl. Protrusions – 493x217x469mm
excl. Protrusions – 429.5x205x447mm |
| Volume (Liters excl. Protrusions) |
40.14L |
| Motherboard Support |
Mini-ITX, Micro-ATX, ATX, SSI CEB, E-ATX*
(*up to 12” x 10.7” motherboards) |
| Expansion Slots |
7 |
| Drive Bays |
5.25“ ODD – N/A
3.5” / 2.5” Combo – 2
2.5” SSD – 4 (2 + 2 Combo) |
| I/O Panel |
USB Ports – 2 x USB 3.2 Gen 1 (USB 3.0)
Audio In / Out – 1 x 3.5mm Audio Jack
1 x 3.5mm Mic Jack
Other – 1 x ARGB Controller,1 x ARGB 2 to 3 Splitter |
| Pre-installed Fan(s) |
Top – N/A
Front – 3 x 120mm ARGB Fans
Rear – N/A |
| Fan Support |
Top – 3 x 120mm,2 x 140mm
Front – 3 x 120mm,2 x 140mm.
Rear – 1 x 120mm |
| Radiator Support |
Top – 120/240/360mm (44mm max motherboard component height)
Front – 120/140/240/280/360mm
Rear – 120mm |
| Clearances |
CPU Cooler – 165mm/6.49”
Power Supply – 180mm/(295mm/11.61” with HDD cage removed)
Graphics Card – 410mm / 16.10” |
| Cable Routing |
Behind MB Tray – 19mm / 0.74” |
| Dust Filters |
Front, Top, Bottom |
| Power Supply Support |
Bottom Mount, ATX |
