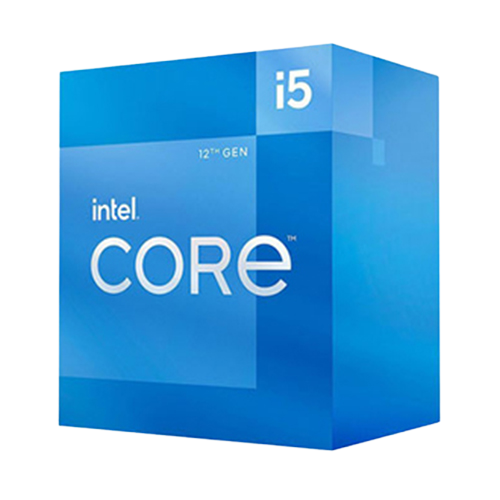

12th Gen Intel Core i5-12400 desktop processor. Featuring PCIe 5.0 & 4.0 support, DDR5 and DDR4 support, 12th Gen Intel Core i5 desktop processors are optimized for gamers and productivity and help deliver high performance. Intel Laminar RM1 included in the box. Compatible with Intel 600 Series Chipset-based motherboards. 65W Processor Base Power.
Intel Core I5 -12400 12th Gen Processor Specifications:
CPU Specifications
Total Cores 6
# of Performance-cores 6
# of Efficient-cores 0
Total Threads 12
Max Turbo Frequency 4.40 GHz
Performance-core Max Turbo Frequency 4.40 GHz
Performance-core Base Frequency 2.50 GHz
Cache 18 MB Intel® Smart Cache
Total L2 Cache 7.5 MB
Processor Base Power 65 W
Maximum Turbo Power 117 W
Supplemental Information
Embedded Options Available Yes
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
Processor Graphics
Processor Graphics Intel® UHD Graphics 730
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.45 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 24
Max Resolution (HDMI)‡4096 x 2160 @ 60Hz Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
Multi-Format Codec Engines 1
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported 4
Device ID 0x4692 / 0x4682
OpenCL* Support 2.1
Expansion Options
Direct Media Interface (DMI) Revision 4.0
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700Max CPU Configuration 1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3.0
Intel® Thread Director No
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Optane™ Memory Supported Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 No
Intel® Turbo Boost Technology 2.0
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
ntel® 64 Yes
nstruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Control-Flow Enforcement Technology Yes
